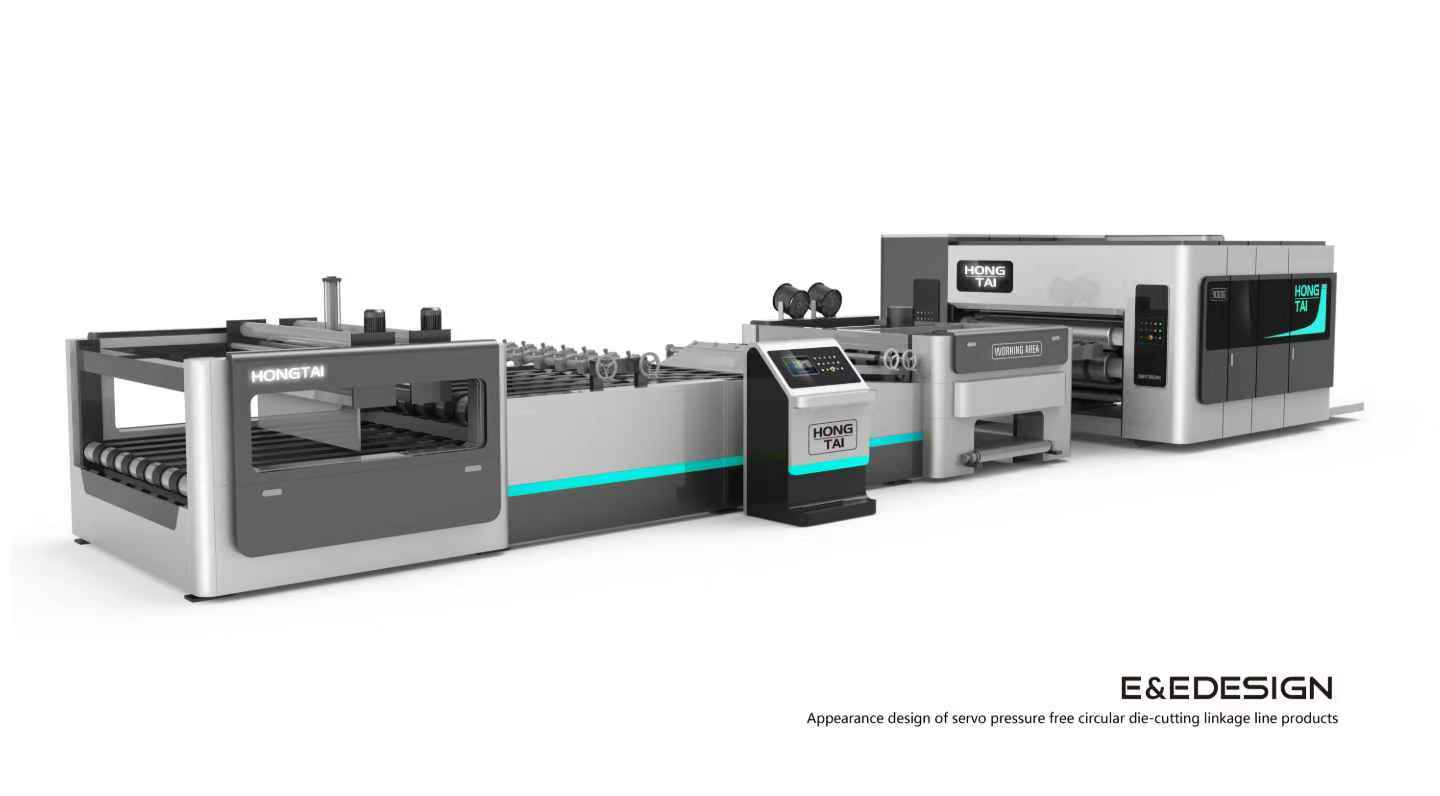

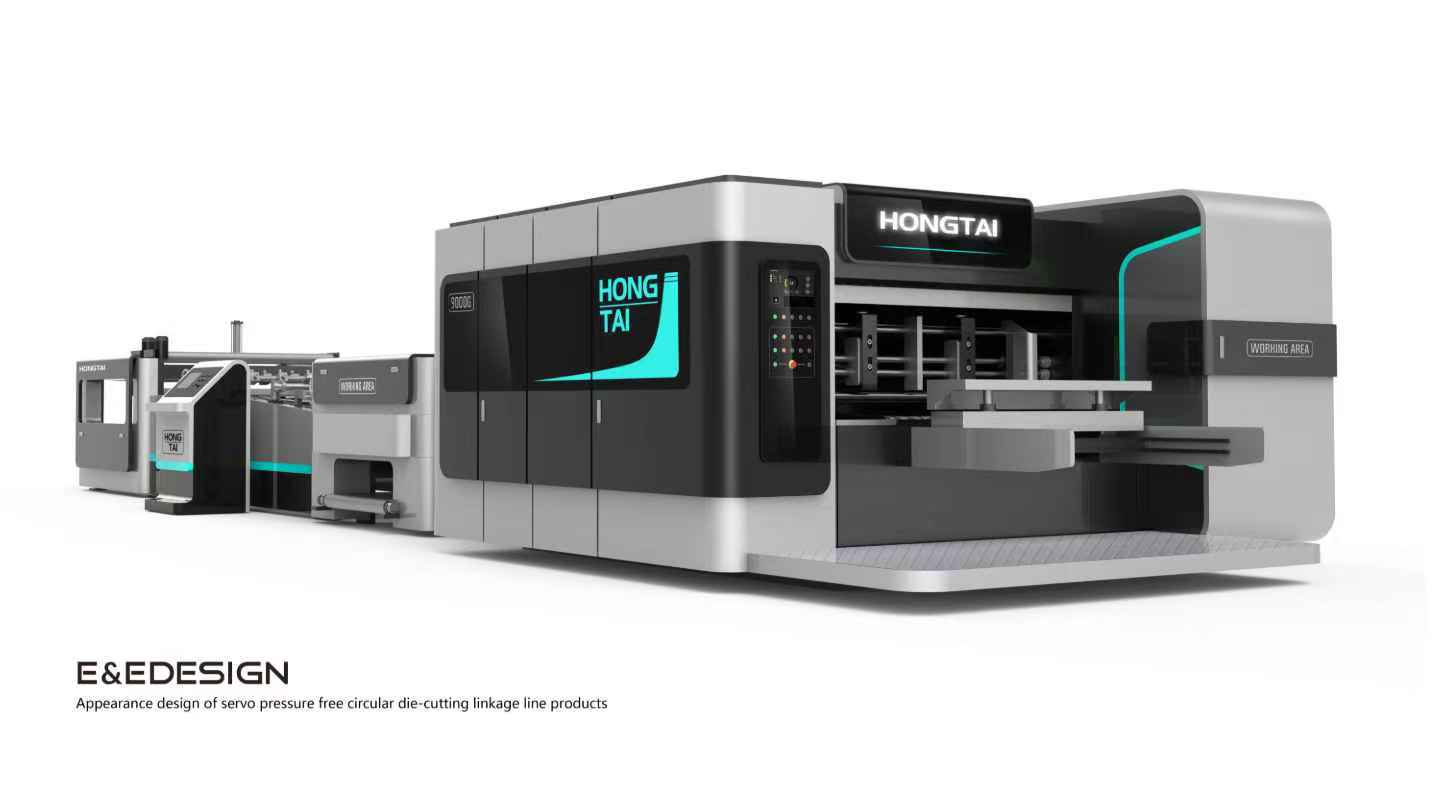

产品介绍：
本联动线集自动上料，免压送纸，底模条压线，模切，清废点数堆码，捆扎，码垛缠绕等功能。是专为彩箱和预印纸箱量身定做的一款新型设备。
Introduction:
The linkage line integrates Automatic Loading, Non-pressure Feeding, Bottom mold strip pressure line, Die-cutting, Stripping, Counting, Stacking, Bundling, Palletizing and Winding,etc.It is a new type of equipment specifically designed for color boxes and pre-printed cartons.
市场优势
◆ 强度高：送纸部采用伺服免压送纸，不但提高了送纸精度，而且不会对瓦楞造成破坏，与传统的拉纸辊相比，模切后的纸板强度高出 25–30%；
◆ 成型好：圆压圆模切实现平压平模切的效果。压线能实现子母线 (凸凹线，上下线) 的功能；压线模切快速成型；
◆ 精度：伺服送纸，底模条压痕，实现精准模切，精度 ±0.75mm；
◆ 节能：实现前后无边料模切，节约原纸。节约率：1~4%；
◆ 自动清废：通过震荡和高压风机，实现完美清废、计数、堆码、输出。
Market Advantages
◆ Higher Strength: The servo-driven non-pressure feeding system not only improves feeding precision but also prevents damage to the corrugated material.The strength of the die-cut cardboard is 25–30% higher than that produced with traditional pulling rollers.
◆ Better Shaping: Achieve the same effects as flatbed die-cutting. The creasing unit enables both convex and concave lines simultaneously, ensuring rapid and precise molding.
◆ Precision: Servo paper feeding, bottom mold strip indentation, achieving precise die-cutting with an accuracy of ± 0.75mm.
◆ Material Saving: Realize front and back edgeless die-cutting,material savings range from 1% to 4%.
◆ Automatic Stripping: Vibration cleaning and high-pressure blowers work together to achieve efficient and perfect stripping of waste material.
参数：
规格型号 | Model | SFMQ1417 | SFMQ1420 |
最高速度（片/ 分钟） | MaxSpeed (Pcs/Min.) | 220 | 220 |
经济速度（片/ 分钟） | Economic Speed (Pcs/Min.) | 140-180 | 140-180 |
最大模切尺寸（mm） | Max Die-cutting Size (mm) | 1400×2060 | 1400×2060 |
最小模切尺寸（mm） | Min Die-cutting Size (mm) | 600×600 | 600×600 |
适应纸板厚度（mm） | Adaptable Cardboard Thickness (mm) | 2-7 | 2-7 |
模切精度（mm） | Precision (mm) | ±0.75 | ±0.75 |
主电机功率（kW） | Main Power (kW) | 40 | 45 |
